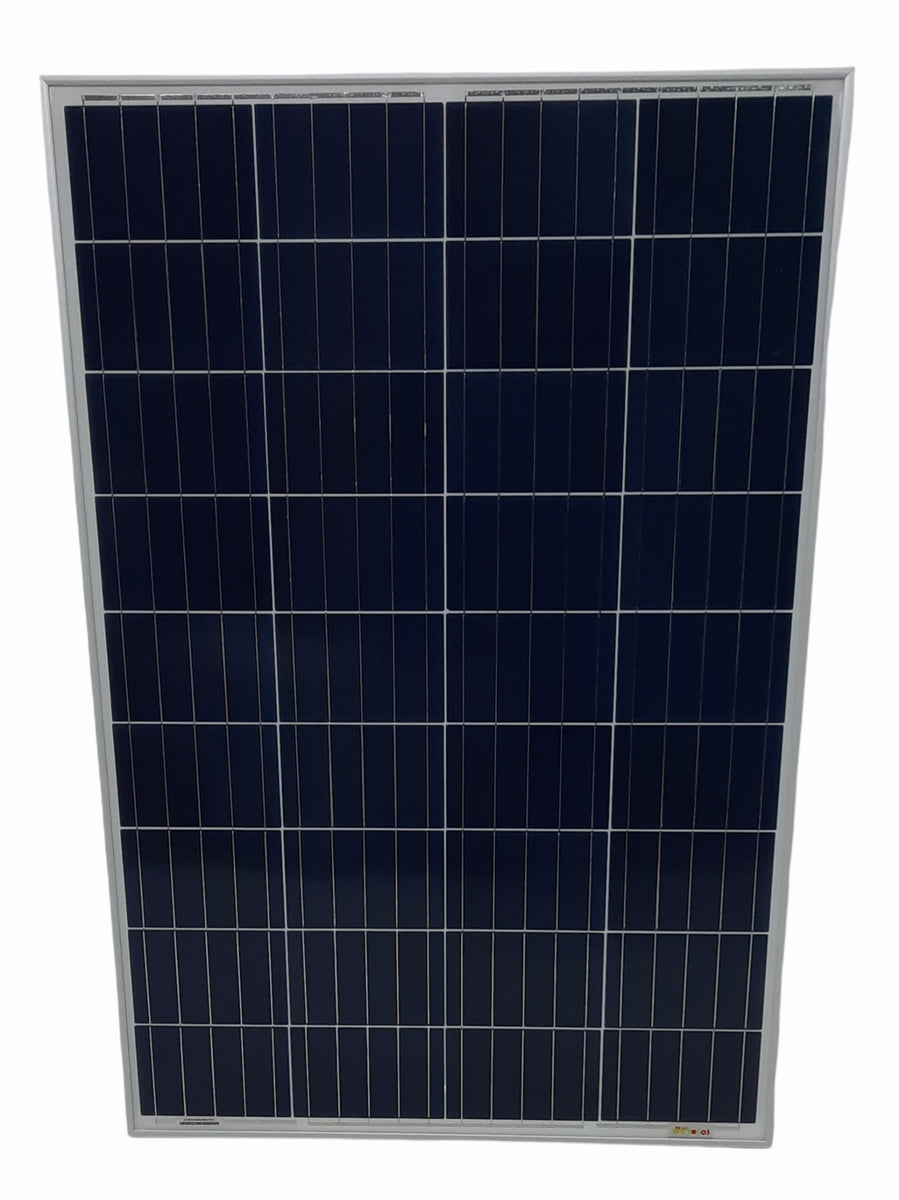

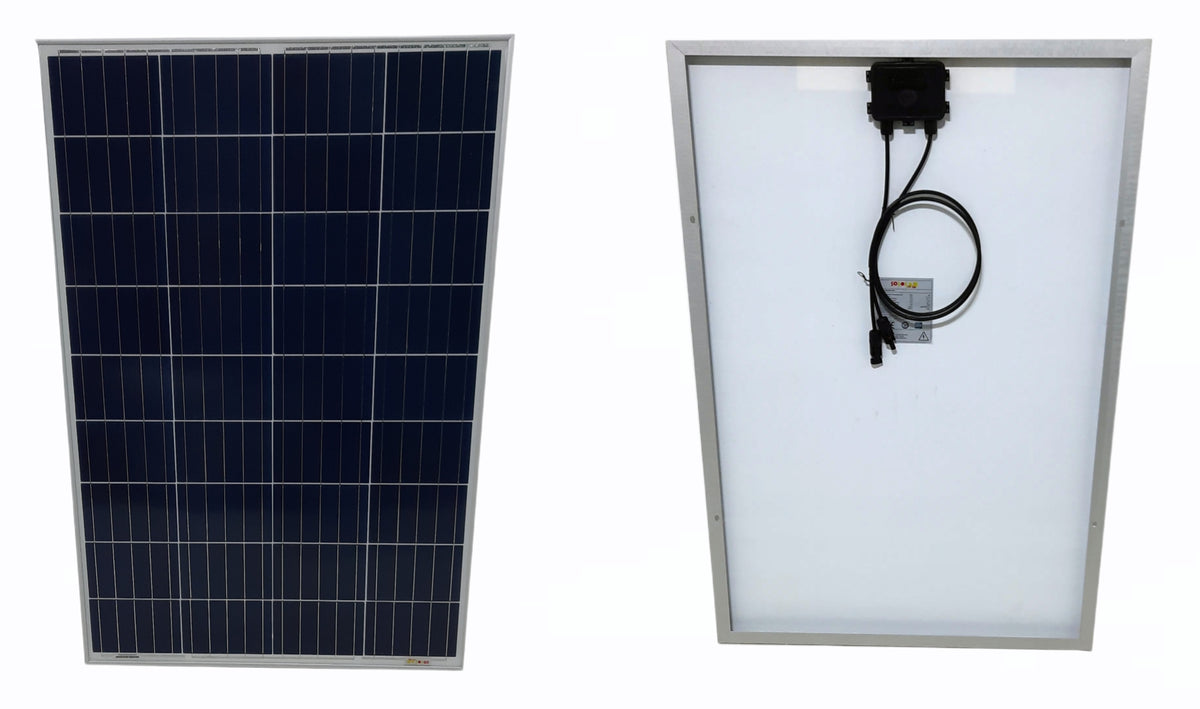

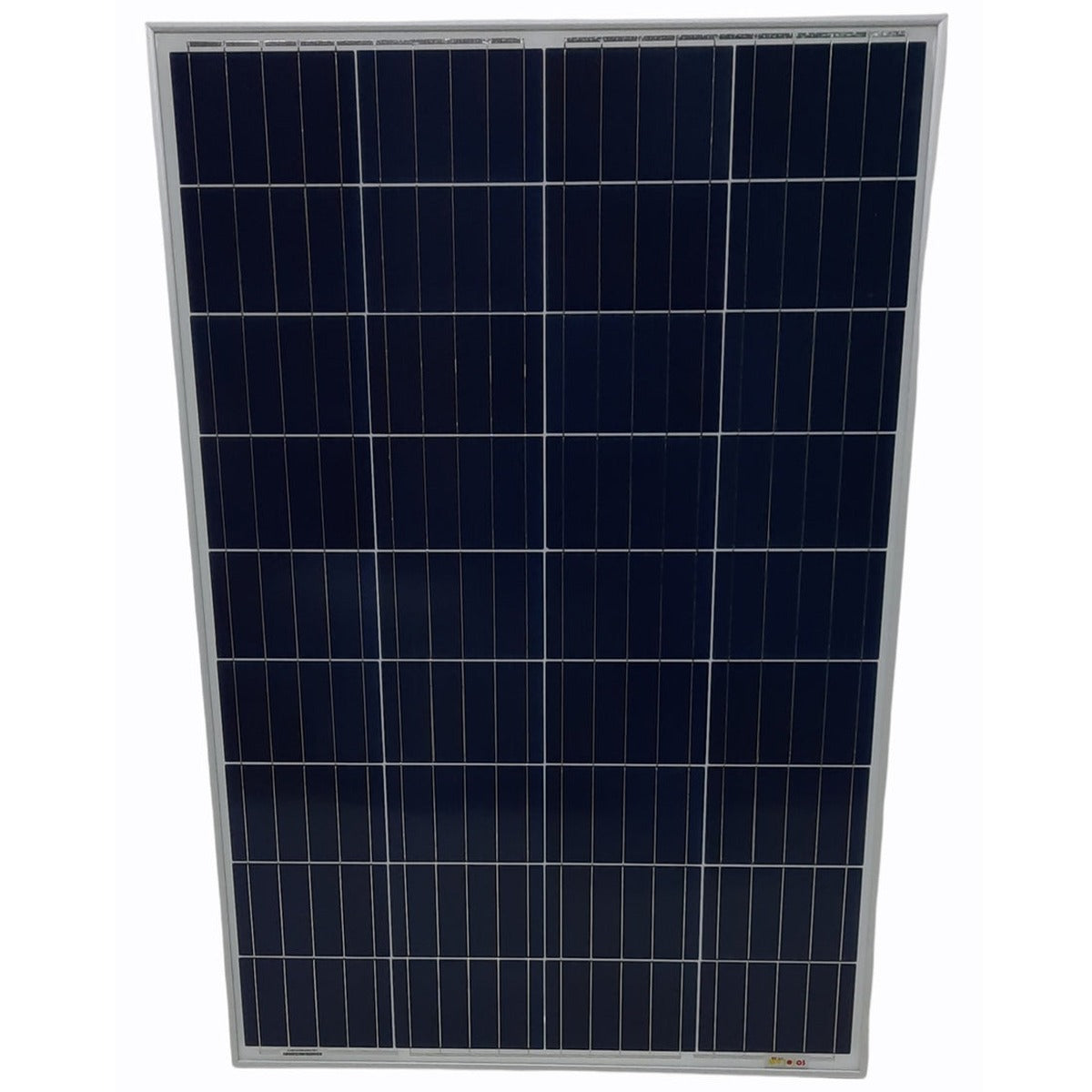

ZS - Solar Panel 100W

A 100W polycrystalline solar panel built for reliable off-grid and backup power charging.

Specifications:
- Model: ASL 100-18-P
- Rated maximum power (Pmax): 100W
- Tolerance: 0/+3%
- Voltage at Pmax (Vmp): 18.1V
- Current at Pmax (Imp): 5.53A
- Open-circuit voltage (Voc): 22.1V
- Short-circuit current (Isc): 5.88A
- Dimensions: 1000 x 670 x 30mm
- Maximum system voltage: 1000VDC
- Mechanical load tested: 2400Pa
- Weight: 11kg
- Cell technology: Polycrystalline silicon, 5BB cell
- Tested at standard test conditions: AM1.5, E=1000W/m², TC=25°C

Warning
Electrical hazard - this unit produces DC electricity. Cover the glass before removing the terminal junction box lid when exposed to light.

What's in the box
1 x Solar Panel 100W
