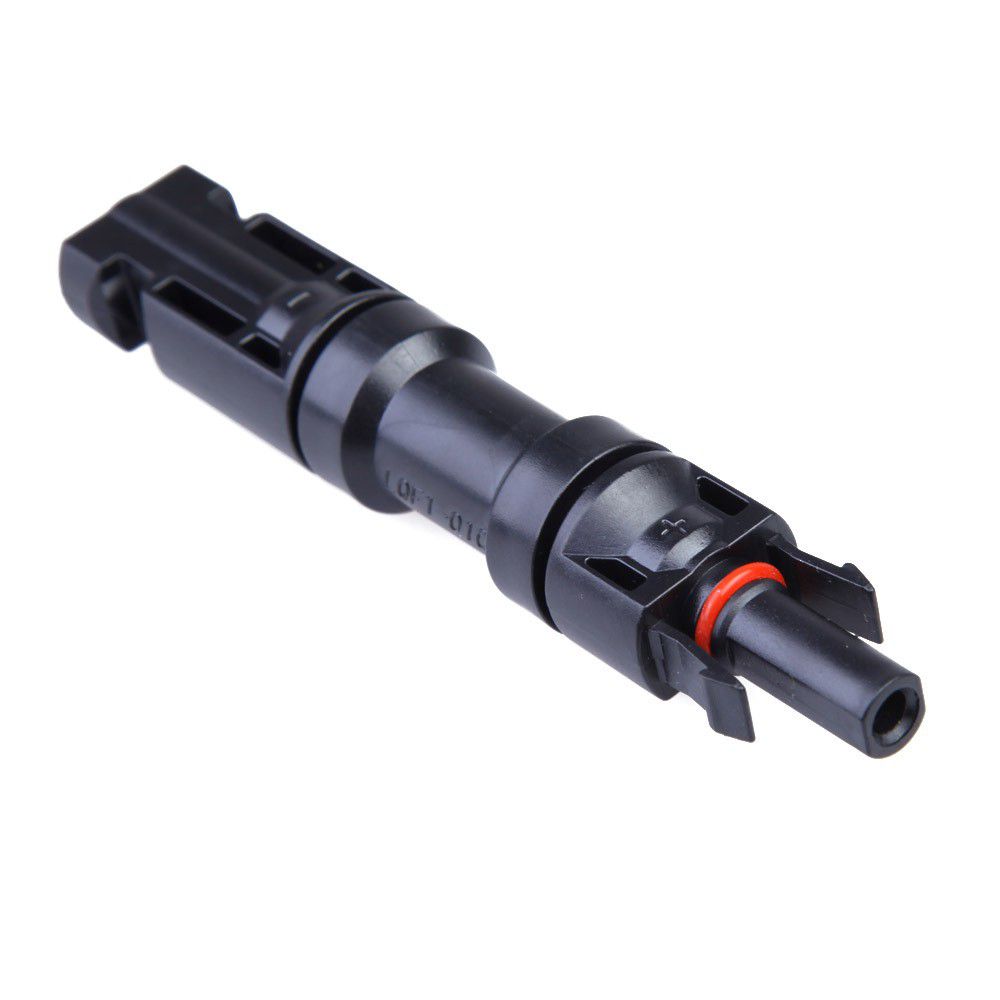

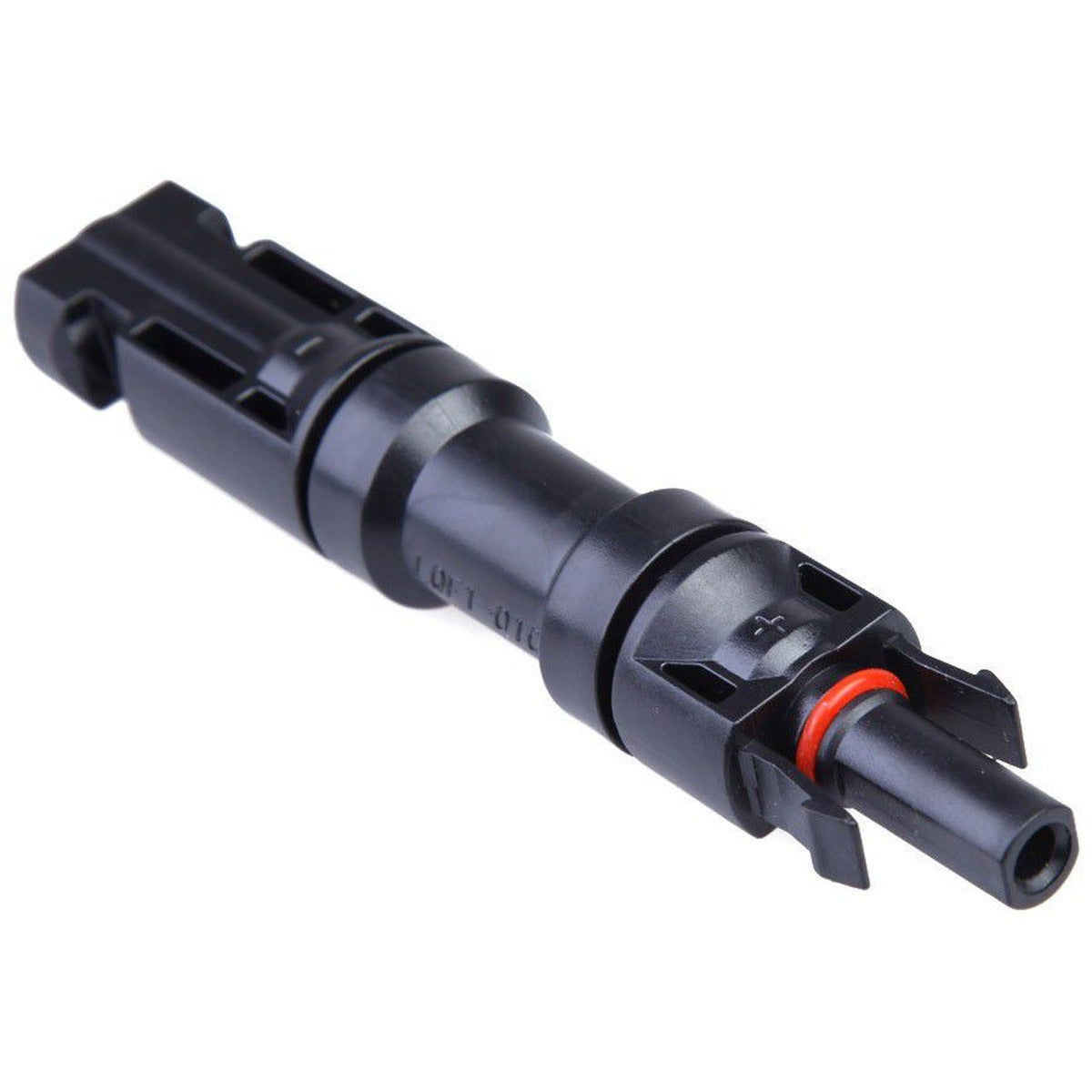

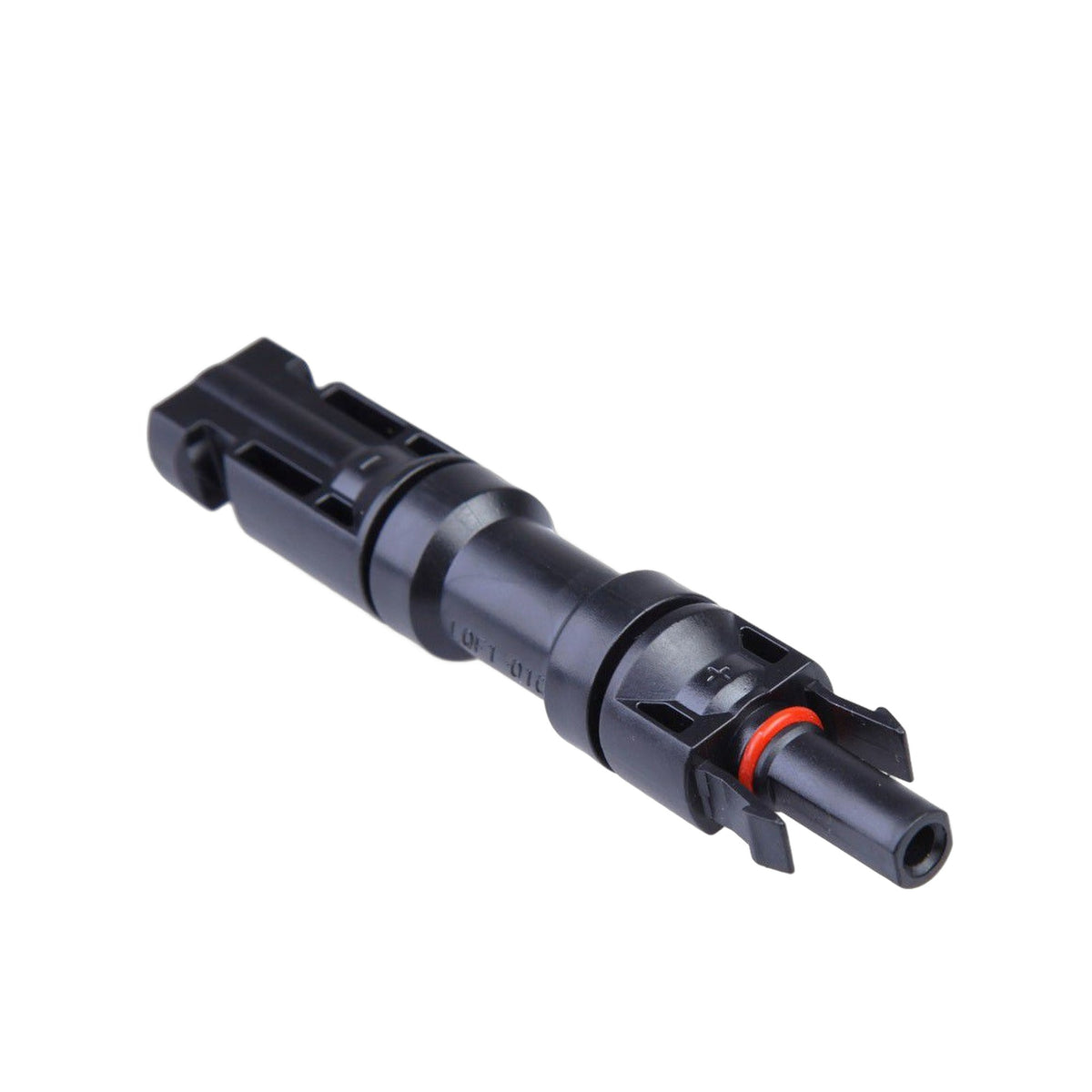

ZS - In-line MC4 PV Solar Fuse - 20A

A 20A in-line MC4 fuse connector that protects your solar installation from reverse current.

Features:
- In-line diode connector for solar panel cable runs
- Fitted between the solar panel and switch box to prevent current reversal
- Copper contacts, tin-coated for easy solder adhesion
- Rubber bushings on end nuts for an air-tight seal
- IP67 rated
- Built-in diode
- TUV-approved connector head

Specifications:
- Connector material: PPO, PC
- Degree of protection: IP67
- Rated current: 20A
- Flame class: UL94-V0
- Rated voltage: 1000V (TUV) / 600V (UL)
- Safety class: II
- Test voltage: 6kV (50Hz, 1min)
- Insertion/withdrawal force: 50N / ≥50N
- Pin dimensions: Ø4.0mm
- Connection system: Crimp
- Temperature range: -40°C to +85°C
- Contact material: Copper, tin plated

What's in the box
Solar Fuse
