ZS - MC4 Solar Panel Cable Connectors - 10 Pairs
ZS - MC4 Solar Panel Cable Connectors - 10 Pairs
Low stock: 5 left
Couldn't load pickup availability

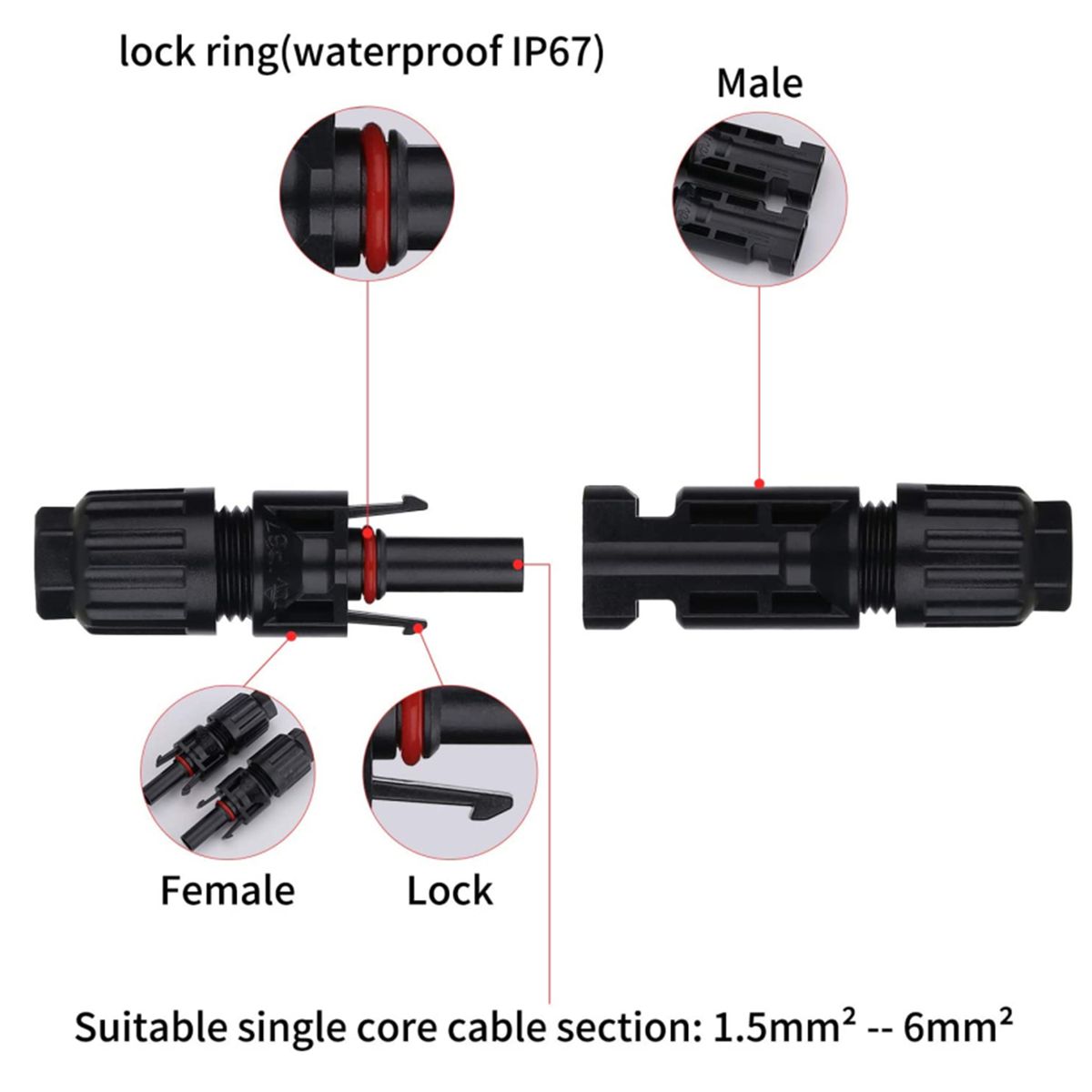

Made out of an insulating PPO material shell with IP67 Waterproof rubber ring.
The thickened copper core helps with faster transmission.
With a self-locking mechanism, the connection is made through compression and is not easily disconnected.
Compatible with PV cables with different insulation diameters (2.5m?-- 6m?/14AWG -- 10AWG).
Colour: Black
Housing material: PPO insulating material
Core material: silver-plated copper, open type
Insertion resistance: 1mm?
Insertion force: ? 60N
Extraction force: ?89N
Waterproof Grade: IP67
Wiring specification: 2.5/4/6mm²
Working voltage: ?DC1000V
Temperature range: -40°C - 125°C
Size: 10.7cm x 1.8cm
Weight: 0.2kg
Note:
This product contains only the 10 pairs connector set, no other items are included.
What's in the box

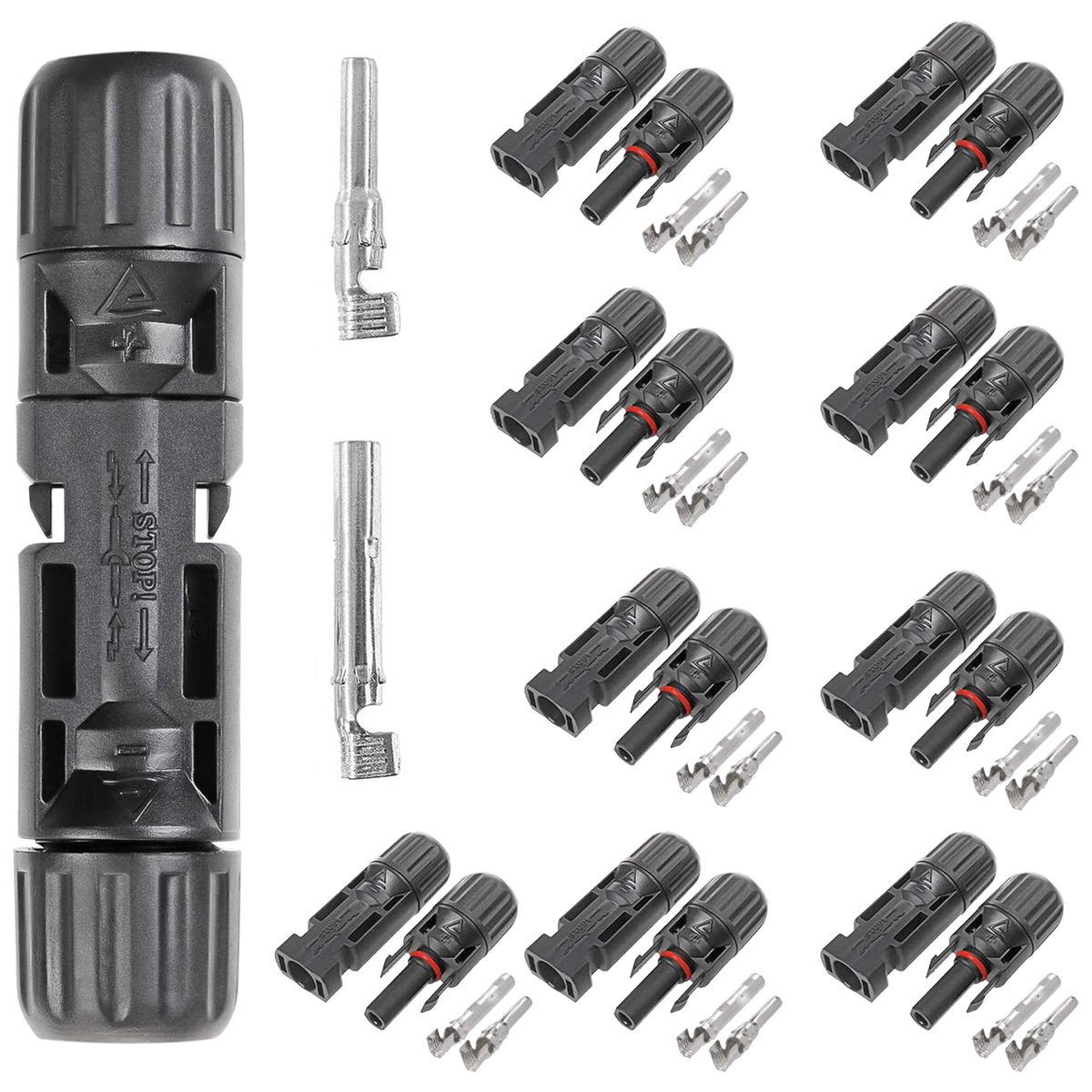

10 Pairs of solar panel connectors (male & female)
10 Pairs of solar connectors pins (male & female)
